Installation Instructions
SENVEND Payment Terminal (UX700)
Required Items
Tool:
- cross-head screwdriver
SENVEND Items:
- SENVEND Payment Terminal UX700
- Mounting frame
- MDB-Y-Cable
- Bolts
- Teltonika LTE Router
- Teltonika LAN Cable
- Teltonika Power Cable
- Teltonika Pole Antenna
- Teltonika Throwing Antenna
Preparatory:
- Disconnect the circuit breaker from the power
Connection of the Terminal
1.

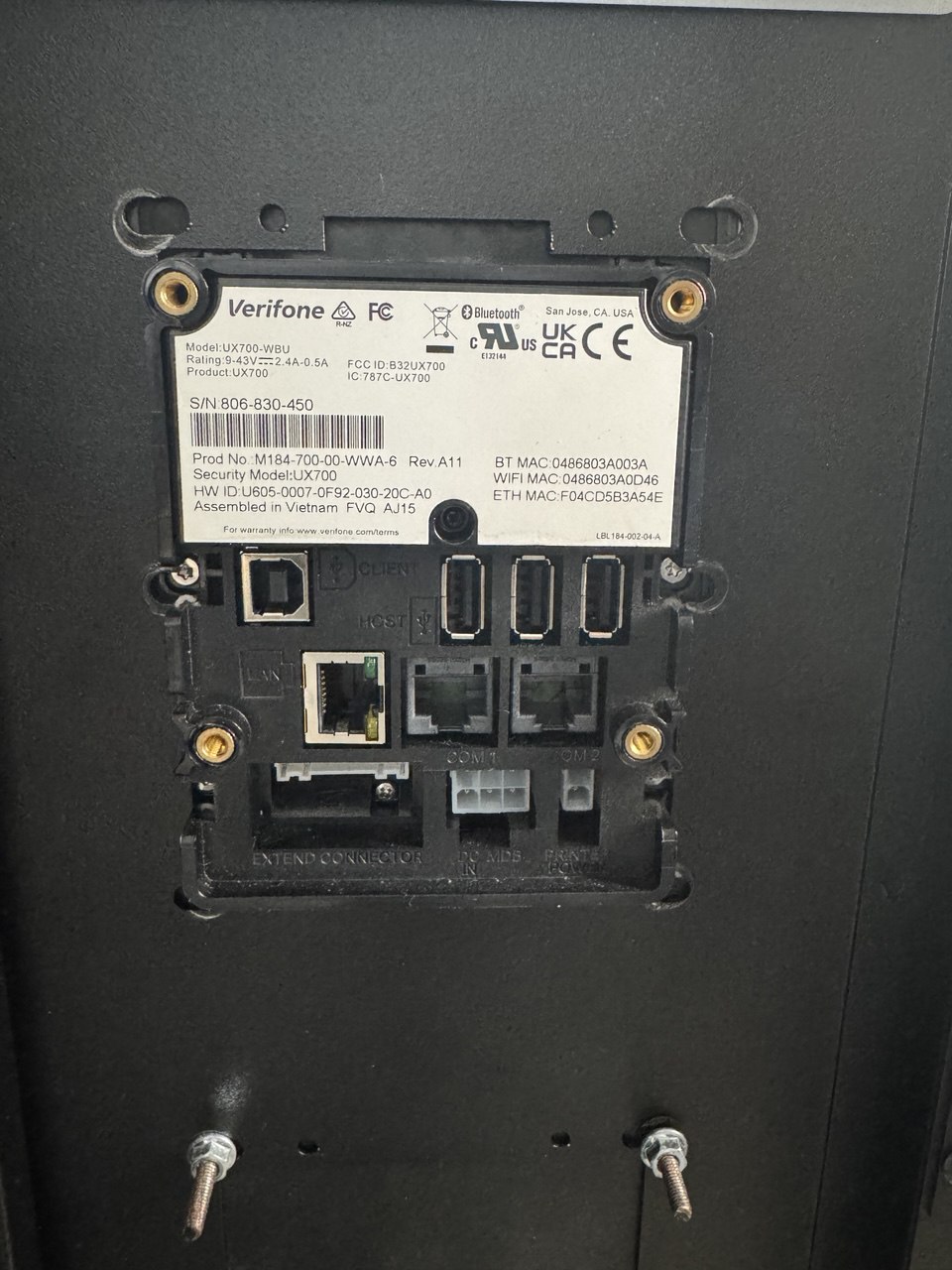

Insert the terminal through the EVA cutout.
2.

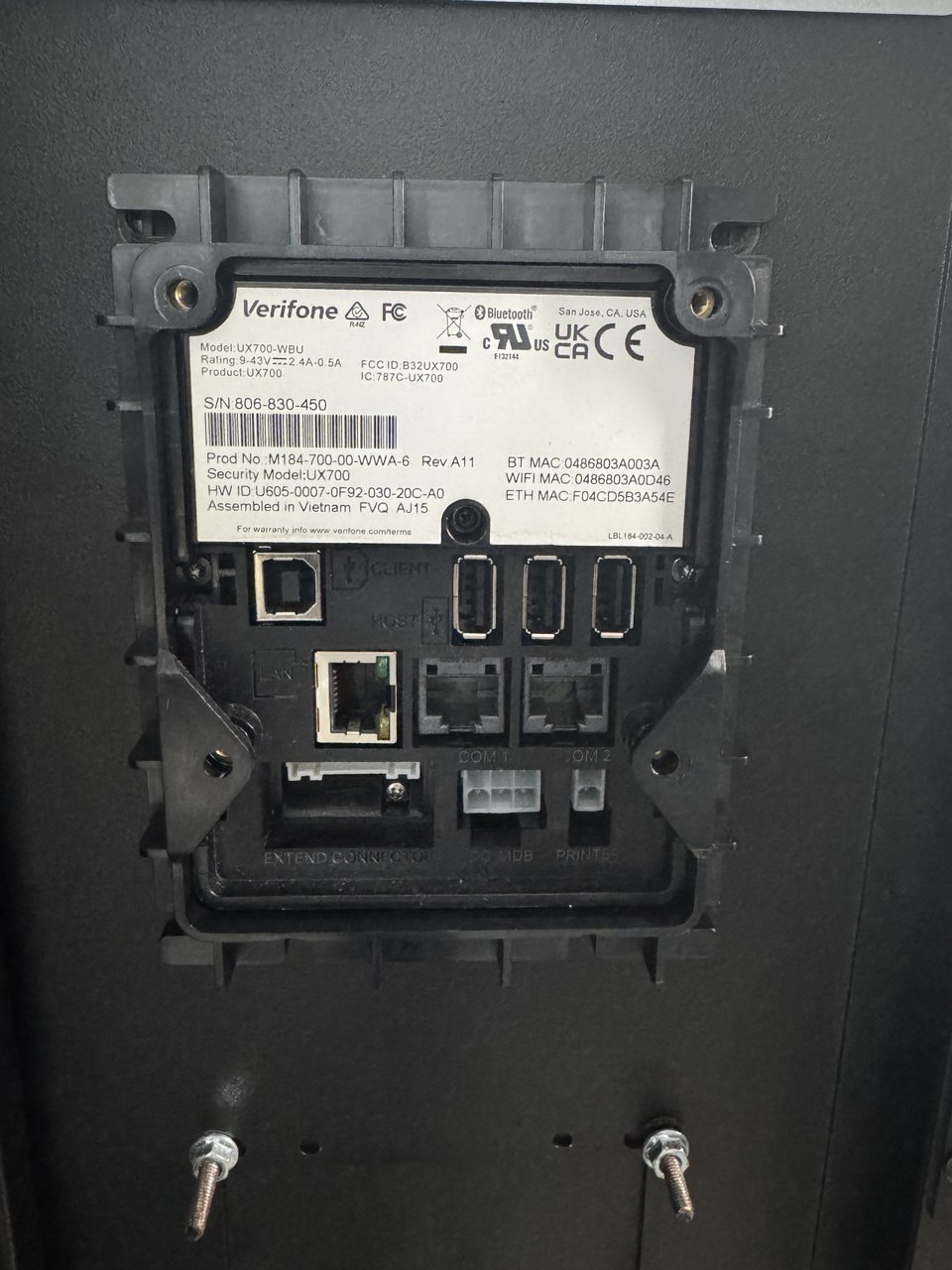

Insert the mounting frame onto the terminal from the inside.
3.

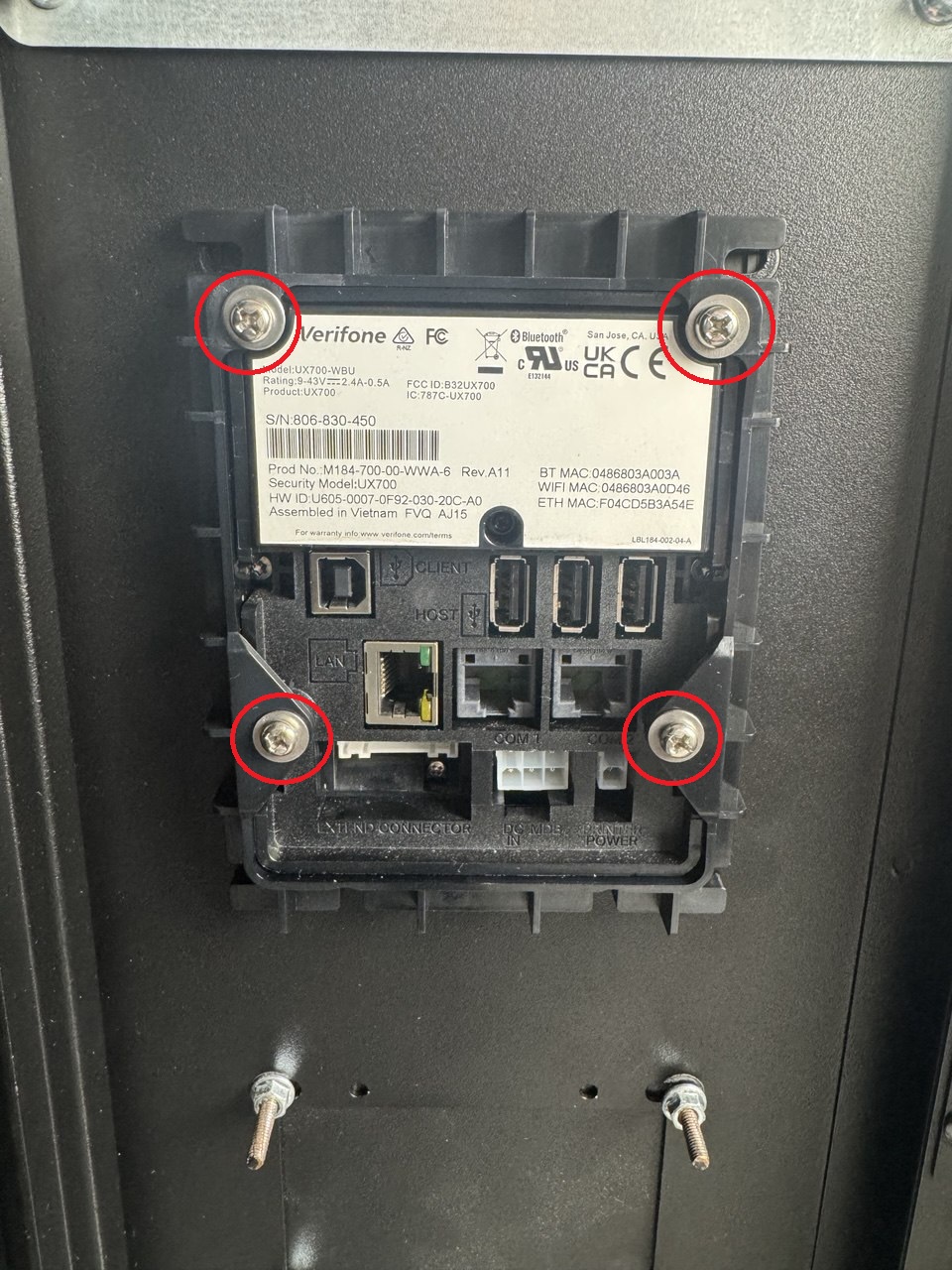

Attach the mounting frame to the terminal using the four supplied screws.
4.

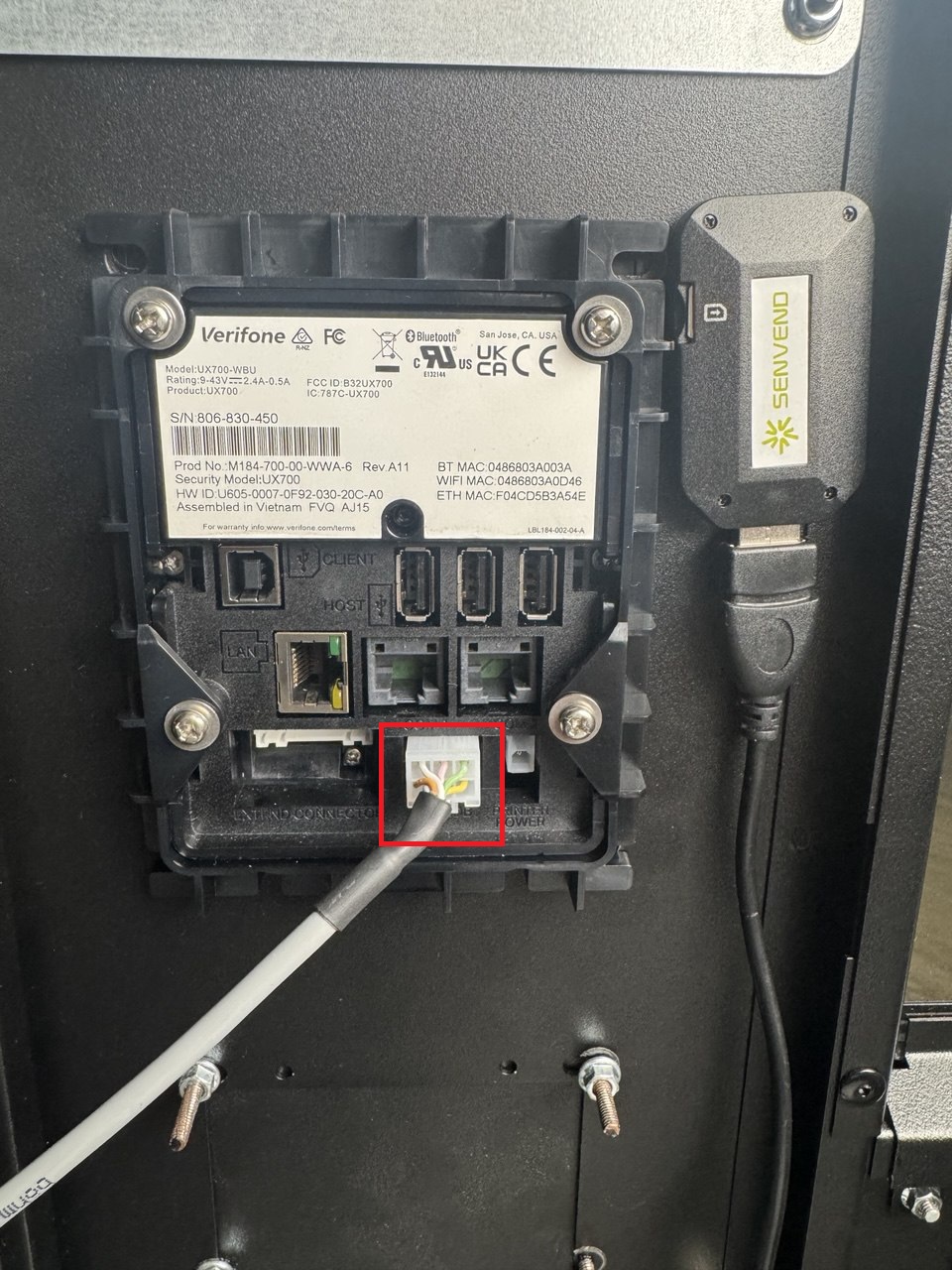

Connect the machine to the terminal via the MDB connector.
5.

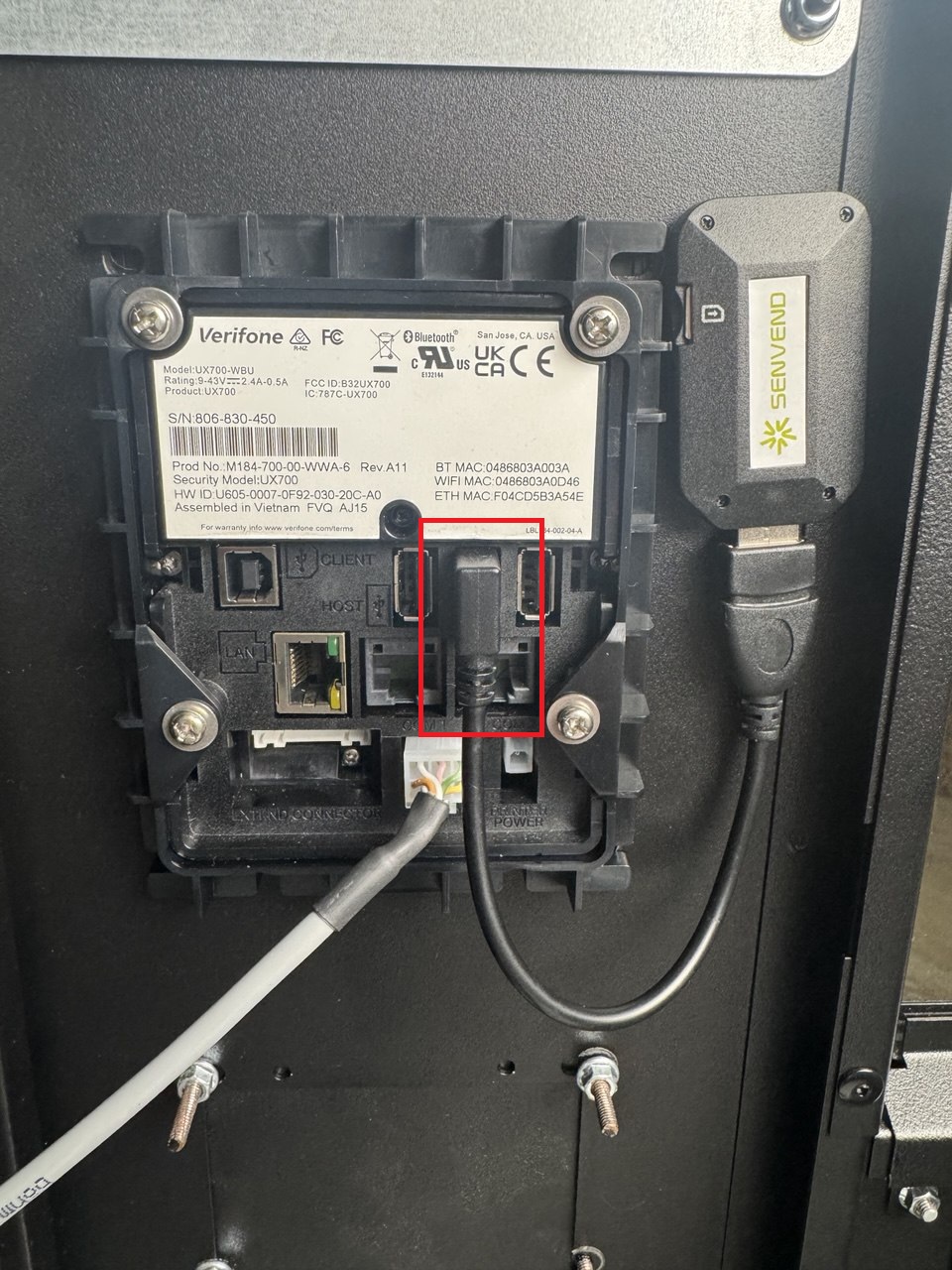

Connect the Teltonika LTE router to the payment terminal using a LAN cable. To do this, plug one end of the cable into the silver LAN port and the other end into the LAN port of the Teltonika router.
Start of the Terminal
- Turn on the power at the machine.
- Wait until the terminal has fully booted up and the green screensaver appears permanently.
- Check if the lights on the LAN port of the terminal are on or blinking. If not, double-check the wiring of the LTE router.
- Wait another five minutes, as the terminal may automatically download and install new updates.
Checking the Payment Function
Important: The payment function will only be available once you have received a message from us confirming the completion of your onboarding. You can also always track the current status of your onboarding in our telemetry.
- Select an item from your vending machine.
- Make a payment.
Telemetry Setup
You can already use your terminal for telemetry or age verification before completing the onboarding process. The terminal is fully functional, except that payments cannot be processed. You can do so at my.senvend.com already enter all data.
Here you will find further information on setting up your telemetry.
